Production test of hoses (3)

Project name

Production test of hoses

Test subject

Fluid test of hoses, both destructive and non-destrucitve

Specifications

40-1800 bar test pressure/corrosion-resistant cabinet/fast feeding of objects

Customer

Confidential information

Year

2012

Description
  • Test type (pressure test - destructive/non-destructive)
  • Automatic
  • Pressure up to 1800 bar
  • Complete engineered sotutions
    • HPU
    • Customised manifolds
    • Operation
    • Training
    • FAT/ SAT

Brands:

Interpump, Norgren, Novaswis, Røtelmann, Bosch, Danfoss

Technics
  • Electric flow rate 4 kW
  • Pump flow rate 9 lpm
  • Tank volume: no tank - fed directly from mains water pressure
  • Material: Plastic tank, otherwise corrosion-resistant acid-resistant
  • Special units S&T high pressure booster
  • Operation
    • PLC (Siemens)
    • User interface: Siemens touch display
    • Fluid media: Water oil emulsion

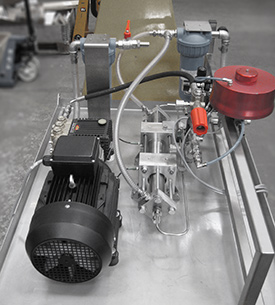

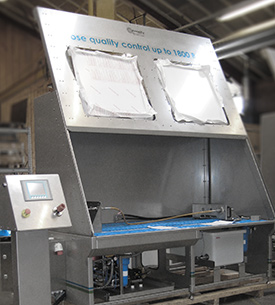

Images
Images
Images
