Single pressure series
Hydraulic bolt tensioning

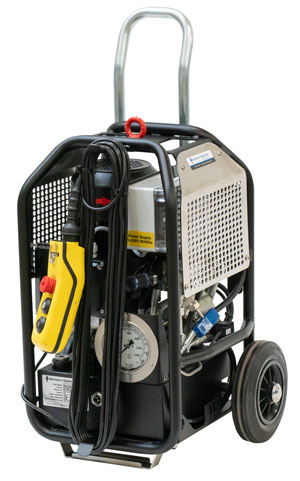

The Black Tower – Tension series is a strong and reliable hydraulic
pump unit for heavy duty tasks.
Used worldwide for bigger hydraulic bolt tensioning jobs in larger
wind turbine foundations and power plant installations.

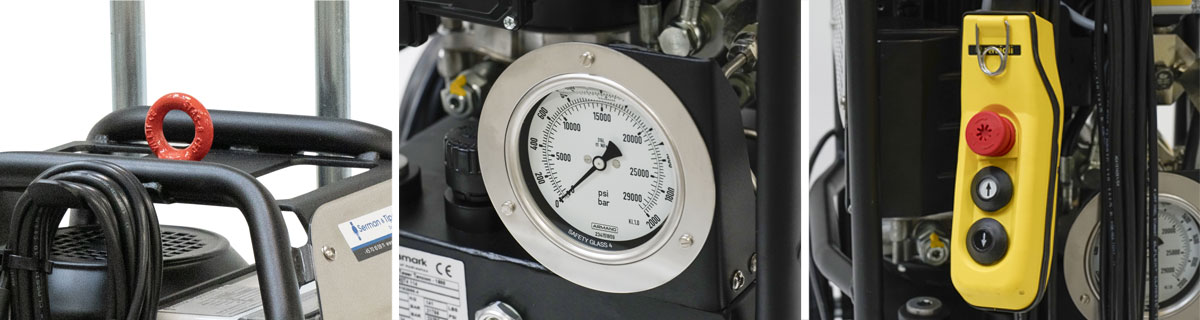

This unit has the following highlighted features:
• 1500 bar continuous load
• Operational in a wide range of temperatures
• Low noise level
• Cabled remote control for easy operation
• 230 Volt
• On wheels for easy handling
• Approved frame for lifting
• Sized to fit most manholes
• Retractable handle
| BLACK TOWER – TENSION: MOBILE PUMP UNIT FOR HYDRAULIC BOLT TENSIONING | ||
|---|---|---|
| PS. no. 100274 114 | ||
| Model | 1500-0 | |
| Max pressure | 1x1500 | [bar] |
| Electrical voltage supply | 1x230 | [V] |
| Working frequency | 50 or 60 | [Hz] |
| Max electrical current | 8,5 | [A] |
| Electrical motor power | 1.5/1.8 | [kW] |
| Cabled remote | - | |
| Outer dimensions D x W x H |
333 x 435 x 577 | [mm] |
| Weight (no oil) | 45 | [kg] |
| Usable oil volume | 5 | [l] |
| Oil tank volume | 7 | [l] |
| BLACK TOWER - TENSION (OPTIONAL) – CALIBRATED MANOMETER | ||||
|---|---|---|---|---|
| Product name | Name Extension |
Description | Max pressure | Outer dimensions |
| Ordering information | [bar] | [mm] | ||
| Calibrated manometer |
- CM | 5 point calibration | 2000 | Ø100 display |
