Single pressure - Portable Power Pack Tension series
Hydraulic bolt tension

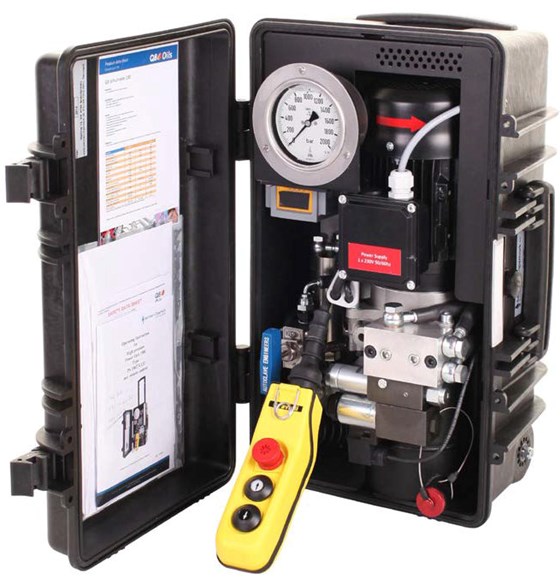

The Portable Power Pack – Tension series is a compact and reliable hydraulic pump unit.
It is very easy to operate, and is built in a sturdy flight case - suitable for transportation. Ideal for onsite hydraulic bolt tensioning service jobs and smaller installation jobs where focus is on having a easy transportable powerpack.
This unit has the following highlighted features:
• Up to 1500 or 2500 bar continuous load
• Operational in a wide range of temperatures and pressures
• Low noise level
• Cabled remote control for easy operation
• 120/230 Volt
• Ideal for service purposes
• Light and handy machine with retractable handle
| PORTABLE POWER PACK – TENSION SERIES: FOR HYDRAULIC BOLT TENSIONING | |||||
|---|---|---|---|---|---|
| PS no. | 100274 132 | 100274 134 | 100274 136 | ||
| Model | 1500-0 | 1500-1 | 2500-0 | ||
| Max pressure | 1x1500 | 1x1500 | 1x2500 | [bar] | |
| Electrical voltage supply | 1x230 | 1x110 | 1x230 | [V] | |
| Working frequency | 50/60 | 50/60 | 50/60 | [Hz] | |
| Max electrical current | 3.5 | 5.4 | 3.5 | [A] | |
| Electrical motor power | 0.55/0.66 | 0.55/0.66 | 0.55/0.66 | [kW] | |
| Cabled remote | 2 | 2 | 2 | [M] | |
| Outer dimensions D x W x H |
247 x 347 x 546 | 247 x 347 x 546 | 247 x 347 x 546 | [mm] | |
| Weight (no oil) | 30 | 30 | 30 | [kg] | |
| Usable oil volume | 1 | 1 | 1 | [l] | |
| Oil tank volume | 1.5 | 1.5 | 1.5 | [l] | |
| PORTABLE POWER PACK -TENSION (OPTIONAL) – CALIBRATED MANOMETER | ||||
|---|---|---|---|---|
| Product name | Name Extension |
Description | Max pressure | Outer dimensions |
| Ordering information | [bar] | [mm] | ||
| Calibrated manometer |
- CM | 5 point calibration | 2000/4000 | Ø100 display |
