Heavy Duty Power Packs Tension series
Hydraulic bolt tensioning
The Heavy Duty Power Pack -Tension series is a strong and reliable hydraulic pump unit for heavy duty bolt tensioning.
Used worldwide for larger hydraulic tensioning jobs in wind turbine foundations, pipe joints and power/heat plants. The unit has 1 adjustable oil pressure range - 0-1500 bar.
Used for industrial assembly or onsite jobs where reliability is a priority.

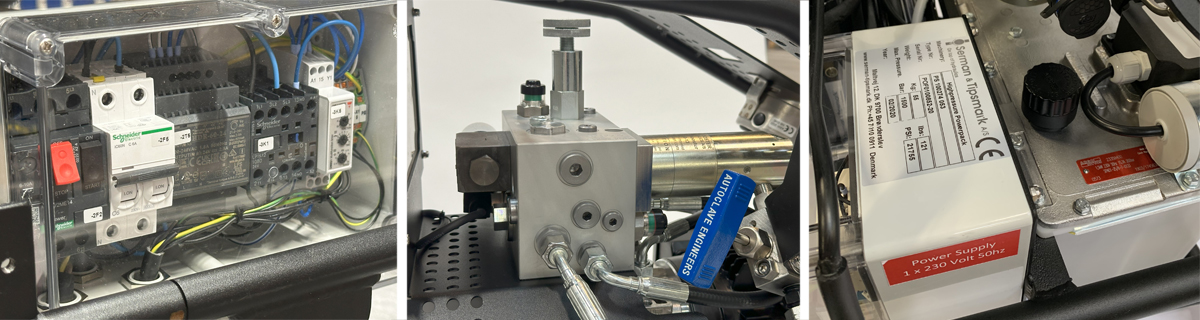

The power pack has the following features:
- Operational in a wide temperature range
- Very low noise level
- Wired remote control for easy operation
- Precise operation with manually controlled valves
Find the product in the webshop
| HEAVY DUTY POWER PACK TENSION SERIES | ||||||
|---|---|---|---|---|---|---|

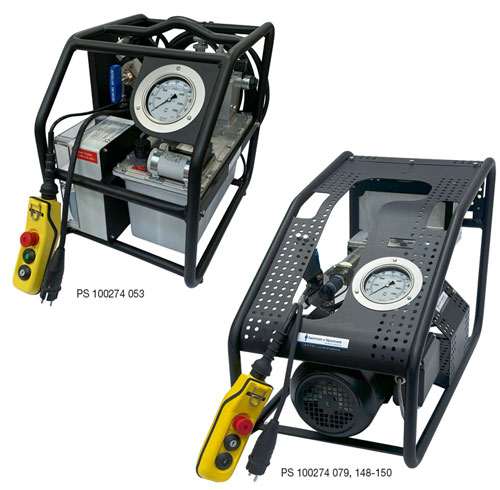

| PS no. | 100274 053 | 100274 079 | 100274 148 | 100274 149 | 100274 150 | |
| Model | 1500 | 1500 | 1500 | 2500 | 2500 | |
| Max pressure | 1x1500 | 1x1500 | 1x1500 | 1x2500 | 1x2500 | [bar] |
| Electrical voltage supply | 1x230 | 1x230 | 1x110 | 1x230 | 1x400 | [V] |
| Working frequency | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | [Hz] |
| Max electircal current | 15,9 | 9,4 | 16,8 | 8,5 | 3,6 | [A] |
| Electrical motor power | 1,5/1,8 | 1,5/1,8 | 1,5/1,8 | 1,5/1,8 | 1,5/1,8 | [kW] |
| Cabled remote | 2 | 2 | 2 | 2 | 2 | [M] |
|
Outer dimensions |
502 x 365 x 470 | 700 x 367 x 462 | 700 x 367 x 462 | 700 x 367 x 462 | 700 x 367 x 462 | [mm] |
| Weight (no oil) | 45 | 45 | 45 | 45 | 45 | [kg] |
| Usable oil volume | 4,5 | 3 | 3 | 3 | 3 | [l] |
| Oil tank volume | 7 | 5 | 5 | 5 | 5 | [l] |
| HEAVY DUTY POWER PACK -TENSION (OPTIONAL) – CALIBRATED MANOMETER | ||||
|---|---|---|---|---|
| Product name | Name Extension |
Description | Max pressure | Outer dimensions |
| Ordering information | [bar] | [mm] | ||
| Calibrated manometer |
- CM | 5 point calibration | 2000/3500 | Ø100 display |
